Hemisphere S321/G10A Star station differential RTK GNSS receiver Equipped with UniStrong RTK control platform

Brand Name : Hemisphere/Unistrong

Model Number : S321/G10A

Place of Origin : China

MOQ : 1 piece

Price : $1,500.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver Unistrong Hemisphere S321/G10A

Customized support : OEM

Channel : 394 Channels

Color : black

Material : Pure magnesium alloy

GPS : L1C/A,L1C,L2C,L2E

Power : Two lithium batteries

Contact Now

Hemisphere S321/G10A Star station differential RTK GNSS receiver Equipped with UniStrong RTK control platform

Overview
Product Details
Satellite tracking
Beidou
B1,B2,B3
GPS
L1C/A,L1C,L2C,L2E
GLONASS
L1C/A,L1P,L2C/A,L2P
Galileo
E1,E5a,E5b
SBAS
WAAS,EGNOS,GAGAN,MSAS
Number of channels
394
positioning accuracy
Chinese precision
Plane: 5-12CM Elevation: 10-15CM
DGNSS
Plane: ± 0.25m+1ppm (RMS) Elevation: ± 0.5m+1ppm (RMS)
static state
Plane: ± 2.5mm+1ppm Elevation: ± 5mm+1ppm
RTK
<30km Plane: ± 8mm+1ppm Elevation: ± 15mm+1ppm
RTK initialization time
<10s
Tilt measurement (2m pole height)
10 ° inclination angle: 2cm 20 ° inclination angle: 3cm 30 ° inclination angle: 5cm
telecommunications
Radio station
Built in 2W integrated transceiver radio station
Radio operating frequency band
410MHz-470MHz
Network
WCDMA network communication, supporting HSDPA+, GPRS, GSM
Bluetooth
Bluetooth 2.1+EDR/Bluetooth 4.0BLE dual-mode Bluetooth
WIFI
802.11b/g/n, supports access point and client modes
Differential link
Supports built-in network, radio, external input, Bluetooth, and WiFi input
Differential format
CMR,CMR+ ,RTCM23,RTCM3.X
Physical indicators
Size
Φ14cm×14.4cm H
working temperature
-30℃ ~ +65℃
Storage temperature
-40℃ ~ +85℃
Protection
IP67
Humidity
100%
Impact resistance
2m dropped from the pole to the cement floor without damage
Electrical indicators
External power supply
DC 9V~22V (with overvoltage protection)
Battery capacity
11.1V 37.74WH intelligent battery
Battery usage time
Static
10h
UHF reference station
6h
UHF mobile station
8h
Network
6h
Storage
Internal storage
4G (supports up to 32G expansion)
Storage Expansion
MicroSD card storage expansion, supports up to 32GB
WebUI
WebUI
MicroSD card storage expansion, supports up to 32GB

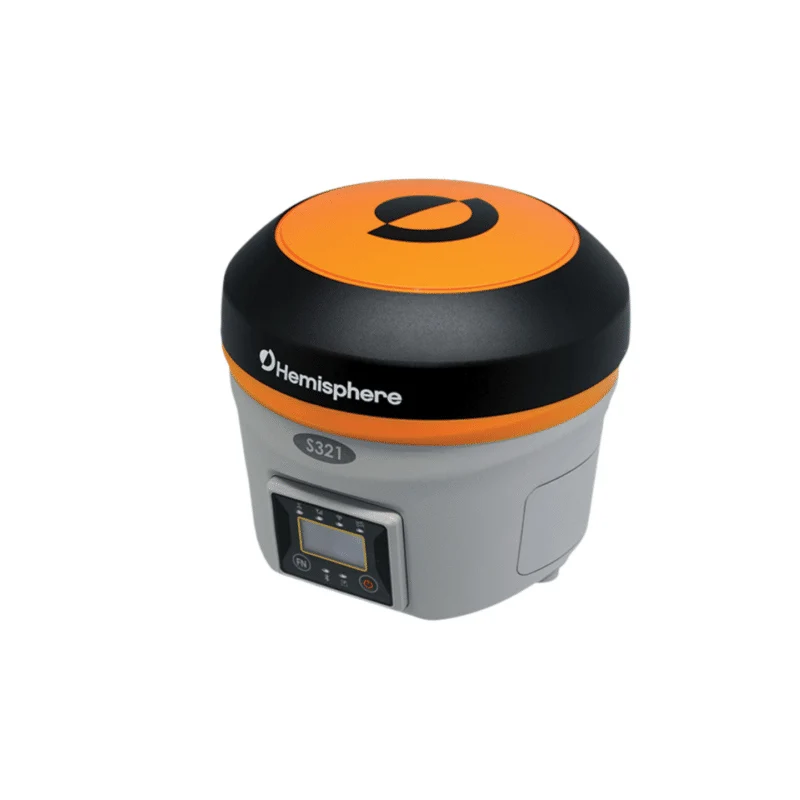

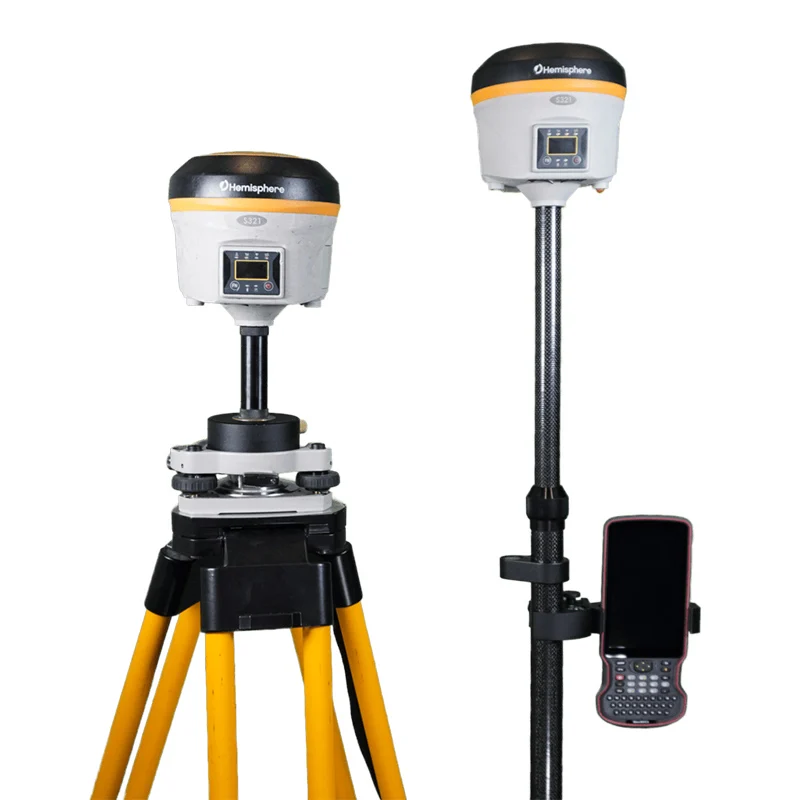

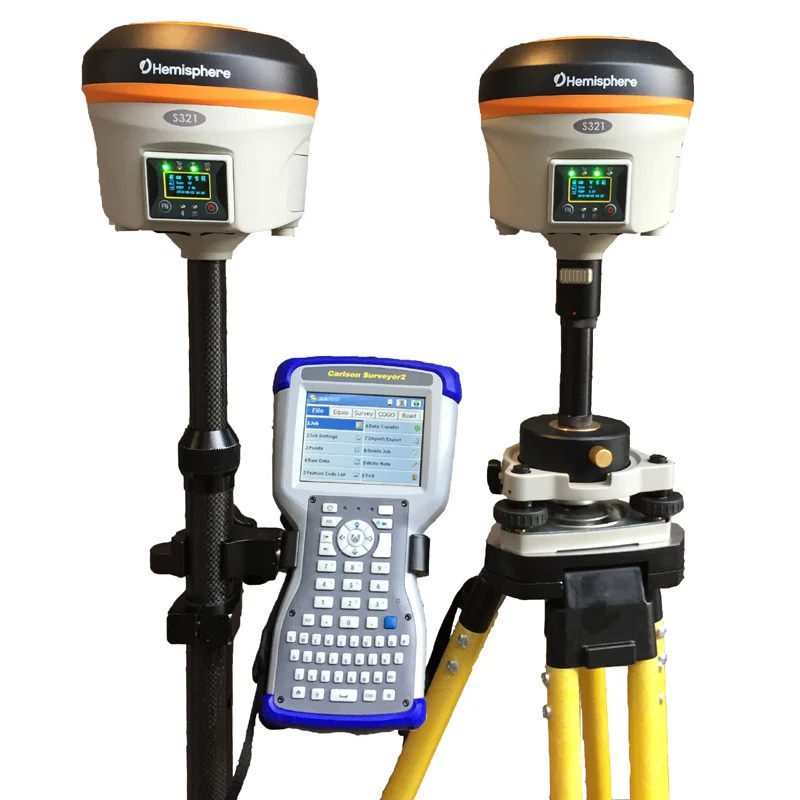

Product Display
Hemisphere S321/G10A Star station differential RTK GNSS receiver Equipped with UniStrong RTK control platform
Hemisphere S321/G10A Star station differential RTK GNSS receiver Equipped with UniStrong RTK control platform
Hemisphere S321/G10A Star station differential RTK GNSS receiver Equipped with UniStrong RTK control platform

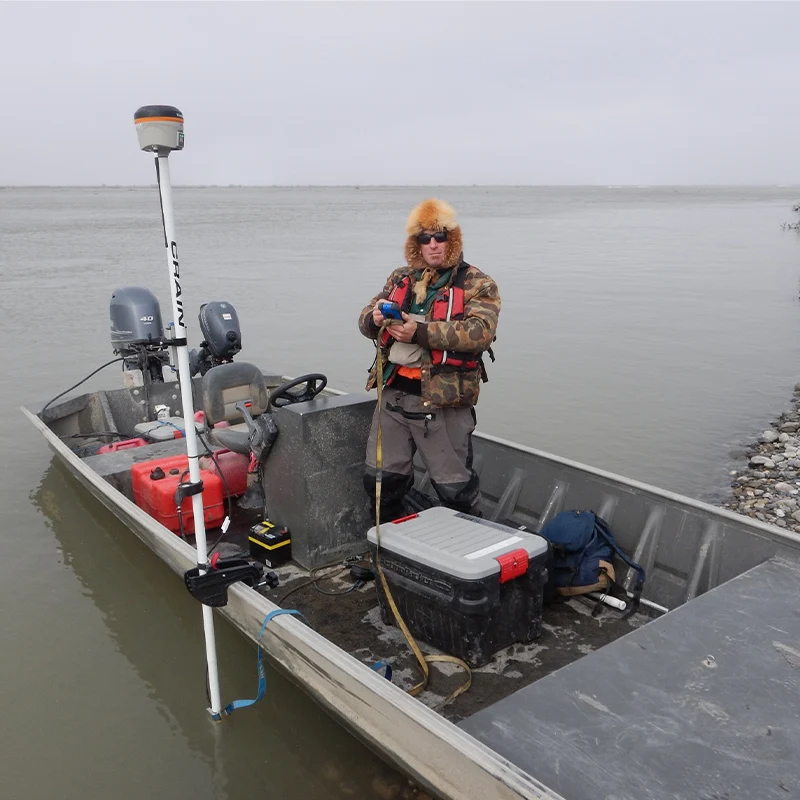

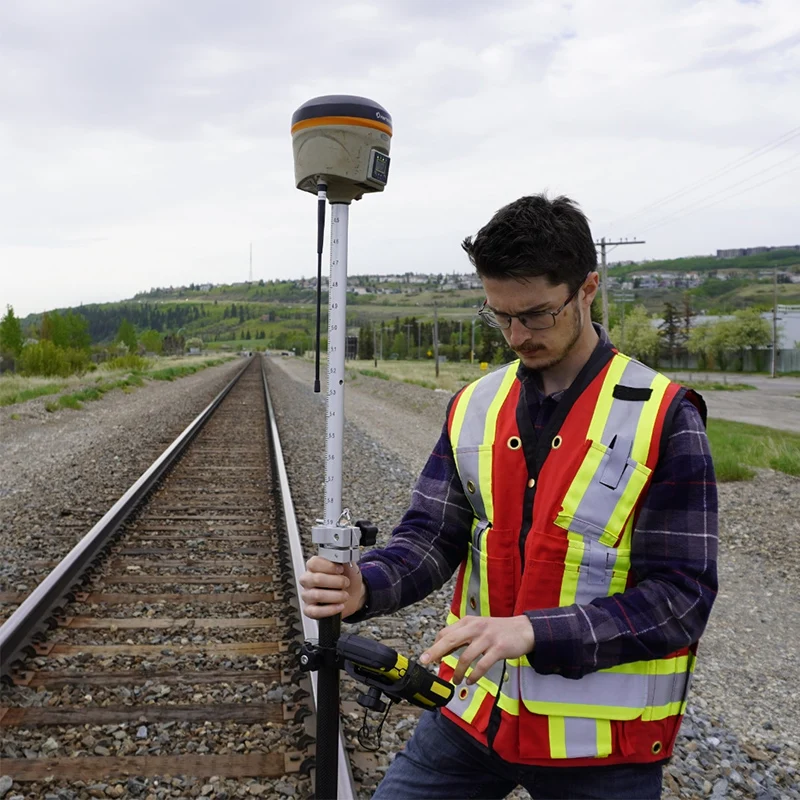

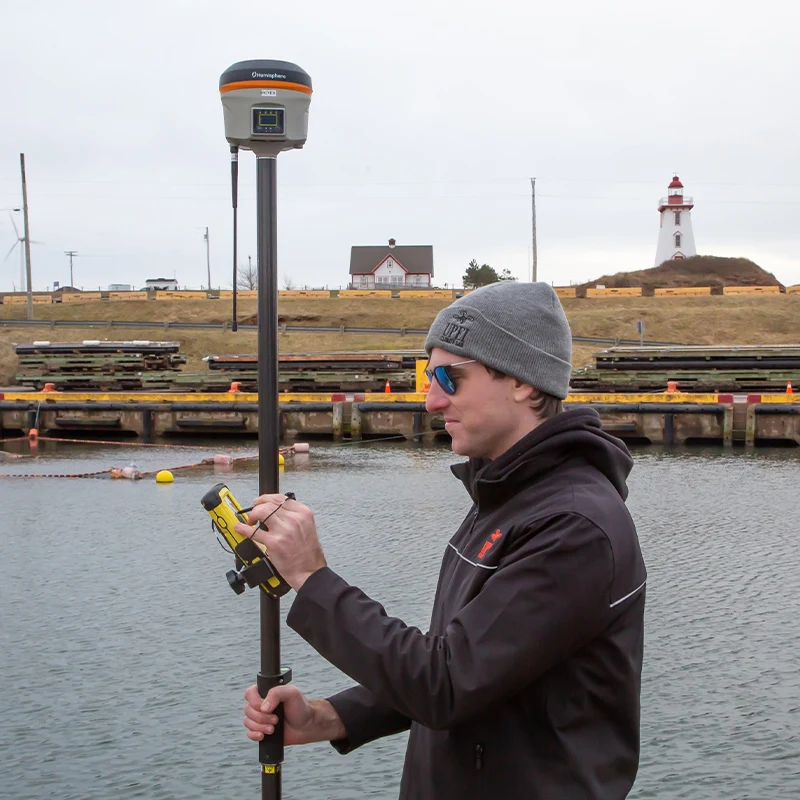

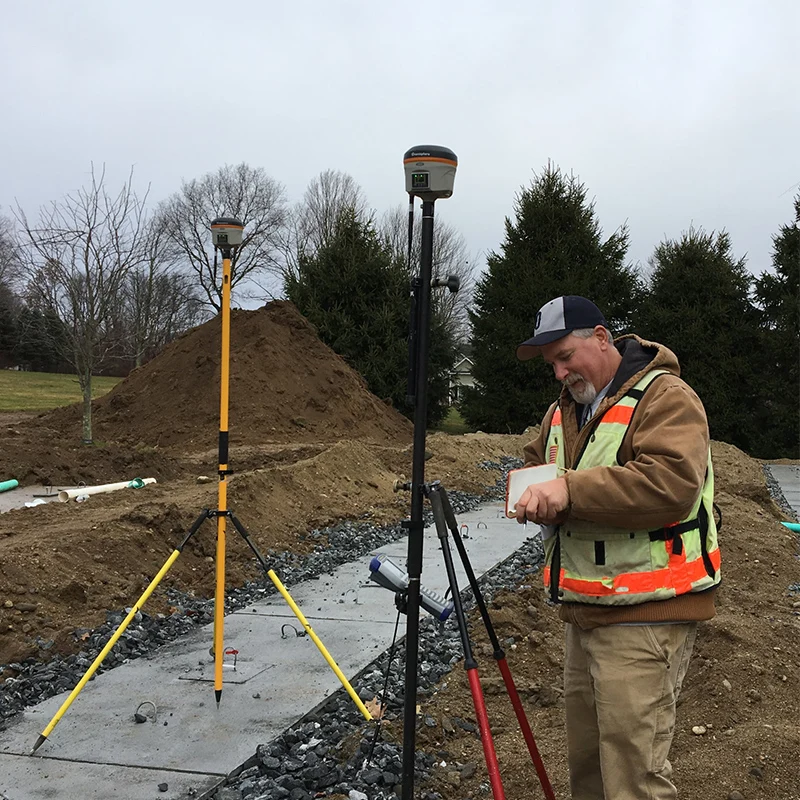

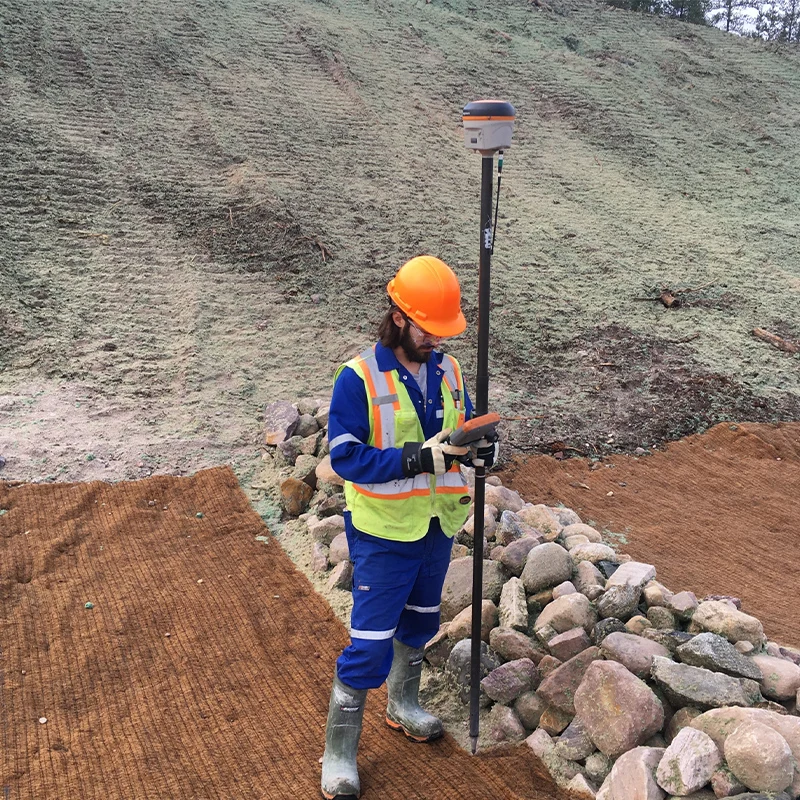

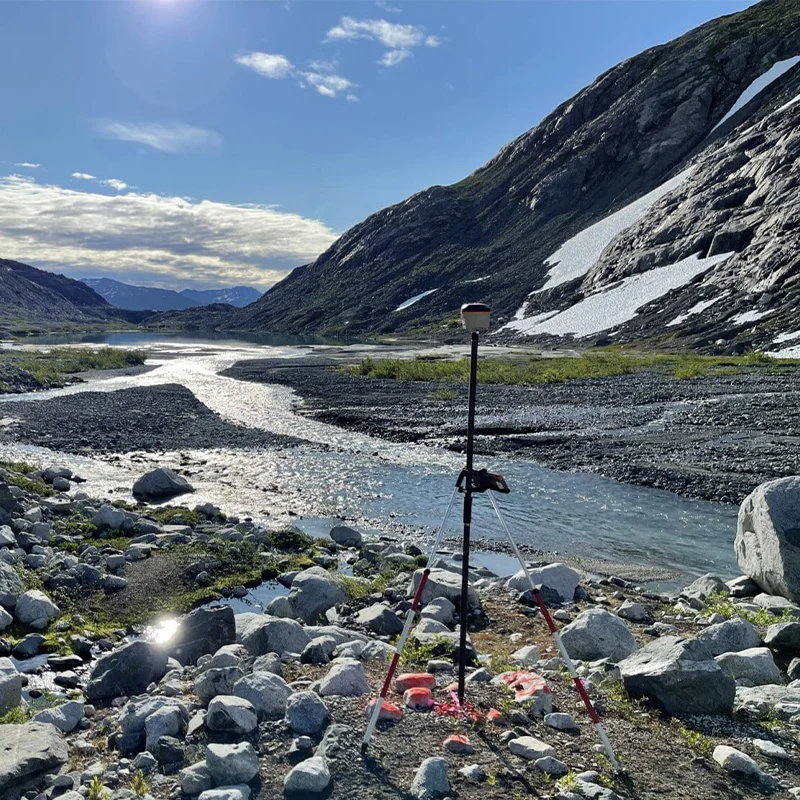

Customer Photos
